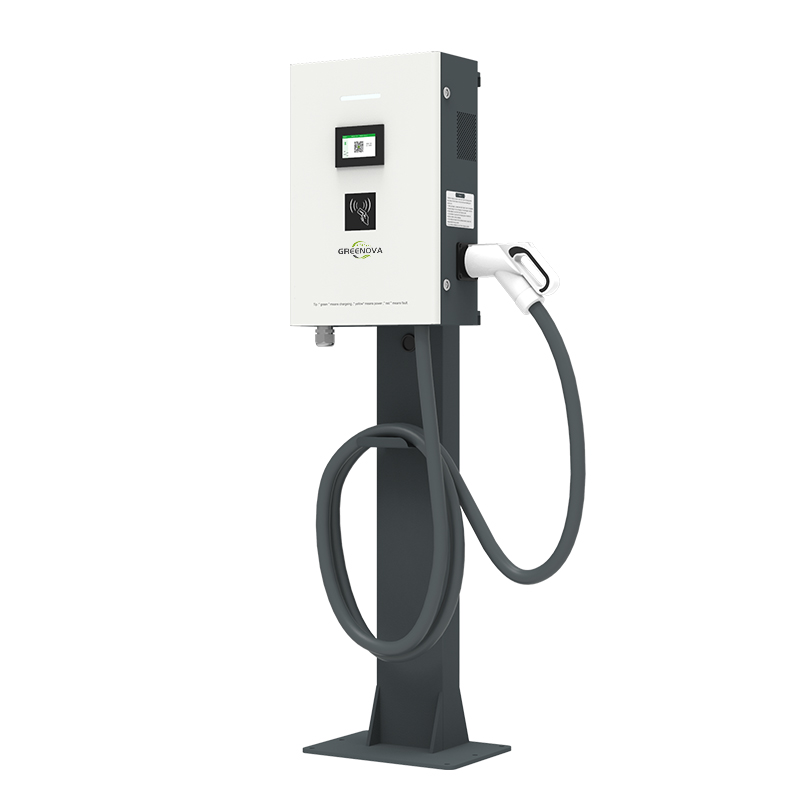

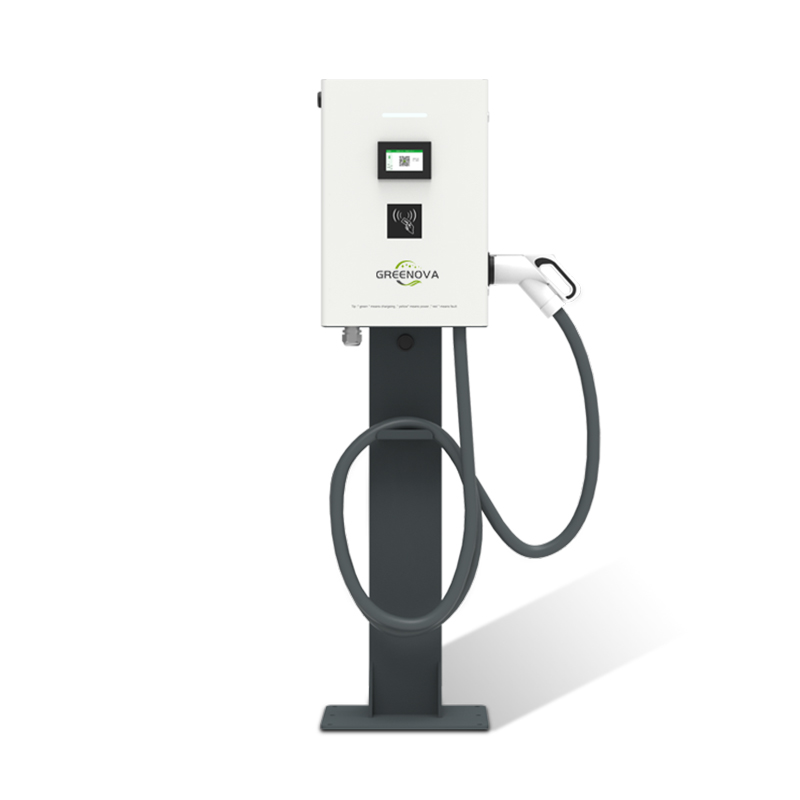

20-40Kw DC Electric Car Charging Station

CCS CHAdeMO- GBT -Wallbox DC Fast charger

20kw 40kW DC Wall-Mounted EV Charger for Public & Private Use

20kW-40kW DC Wall-Mount EV Chargers are built with compact design for Public Charging Stations ,Corporate & Fleet Charging,Commercial & Retail Locations ,Residential & Community Parking, Highways & Service Areas ,Auto Dealerships & Service Centers ,Industrial & Port ects. Greenova DC EV Charging Station supports all major standards—CCS1, CCS2, GB/T ,CHAdeMO—ensuring a fit for a range of electric vehicles.

Greenova Wall-Mounted EV Charger – Key Features & Benefits

✅ OEM & ODM Support & Multi-Language Customization – Tailored solutions to meet diverse market needs.
✅ Compact & Space-Saving – Wall-mounted design optimizes installation for homes, businesses, and public charging stations.
✅ Universal Compatibility – Supports CCS, CHAdeMO, and GB/T standards for seamless charging across global EV models.
✅ Safety and Efficiency – With an efficiency over 95% and power factor above 0.98, the station also offers multiple layers of protection for user safety.
✅ Reliable & Safe – Equipped with overvoltage, overcurrent, short-circuit, and overheating protection for worry-free charging.

Get A Free Quote

20-40kW Compact DC Charger | Wall-Mount EV Fast Charging for home and commercial

Greenova Wall-Mounted EV Charger – Reliable & Smart Charging Solution

Greenova, a 15 years EV charger manufacturer, offers a wall-mounted EV charger designed for residential, commercial, and public charging stations. With universal compatibility, it supports CCS, CHAdeMO, and GB/T, ensuring seamless charging for global EV models. Featuring OCPP integration, RFID authentication, and remote app control, it enhances user convenience and security. Its compact, space-saving design optimizes installation in parking lots, garages, and fleet operations. Built-in safety protections against overvoltage, overcurrent, and short circuits ensure reliable performance. Greenova provides OEM & ODM solutions, catering to EV charger distributors, wholesalers, and fleet operators worldwide. Join to us to power the ev future.

DC Fast Mobile Charger/Portable/Mobile Storage EV Charger Technical/Parameters

Category	Model	GN-ENCDC020-30K
input	Power Supply	3P+N+PE
	Battery Pack Voltage	380VAC+15%
	Frequency	45/65Hz
	THDi	≤ 5%
	Efficiency	≥ 95%
	Power Factor	≥ 0.99
Output	Connector Type	CCS1/CCS2/GB/T/CHAdeMO
	Voltage	200-1000VDC
	DC Current	200Amax/250A(Optional)
	Power Rating	20kw 30kw
	Voltage Accuracy	≤ 0.5%
	Current Accuracy	≥ +1%
General	HMI	7-Inch Touchscreen
	Charging Start Method	RFID Card/QR Code /Password
	Cable Length	5m
	Communication Protocol	OCPP 1.6J
	Operating Noise Level	≤ 75dB
	Ingress Rating	IP54
	IK Rating	IK10 (display is IK08)
	Power Meter	Accuracy Class 1.0 energy meter
	Enclosure	Galvanized steel, surface sprayed with anti-corrosion paint
	Place of Installation	Indoor / Outdoor
	Product Dimension(WDH)	650440268mm 650440268mm
	Package Dimension(WDH)	980700630mm 980700630mm
	Protection	Over Current,Under Voltage,Over Voltage,Short Circuit,ResidualCurrent,Surge Protection,Over Temperature
	Certification Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772,CHAdeMO etc
	Network Connection	Cellular modem:WIFI 4GLAN:10/100 Base-T Ethernet
Environment	Operating temperature	-25° C~+55° C
	Storage temperature	-40° C~+75° C
	Maximum Installation Height	≤ 2000m
	Operating Humidity	5%~95% RH

Get Your DC Wall-Mount Charger Quote Now

Experience reliable, efficient charging—contact us for a quote today!

Get A Free Quote Now

Products Categories

DC EV Chargering Station

AC EV Charger

Home AC EV Charger

Commercial AC EV Charger

AC Portable EV Charger

Split EV Charger

Battery Energy Storage System

Emergency Charging System

Get A Free Quote

Smart DC EV Charger | Wall-Mount Fast Charging/ DC Fast EV Charger Applications

Applications of Wall-Mount DC Charging Station

The Greenova Wall – Mounted EV Charger is ideal for a wide range of charging applications, offering a reliable solution for both residential and commercial use. Its compact design and universal compatibility make it perfect for:
Home Charging – Convenient charging for EV owners in private garages, providing space-efficient and smart charging with app control and RFID authentication.
Commercial Charging Stations – A robust solution for retail centers, hotels, or office buildings, offering quick and easy access to multiple EV models, optimized for high-traffic areas.
Public Charging Infrastructure – Positioned in parking lots or along highways, providing convenient charging options for EV drivers on-the-go, supporting varied charging standards (CCS, CHAdeMO, GB/T).
Fleet Operations – Essential for electric vehicle fleets, ensuring fast, efficient, and safe charging with remote monitoring for fleet managers.
Workplaces and Hospitality Industry – Ideal for hotels, resorts, and corporate offices, offering guests and employees a smart, reliable EV charging solution that enhances sustainability efforts.

With these specialized applications, the Greenova Wall-Mounted EV Charger stands out as a versatile charging solution for various market needs, including fleet operators, businesses, and individual EV owners.

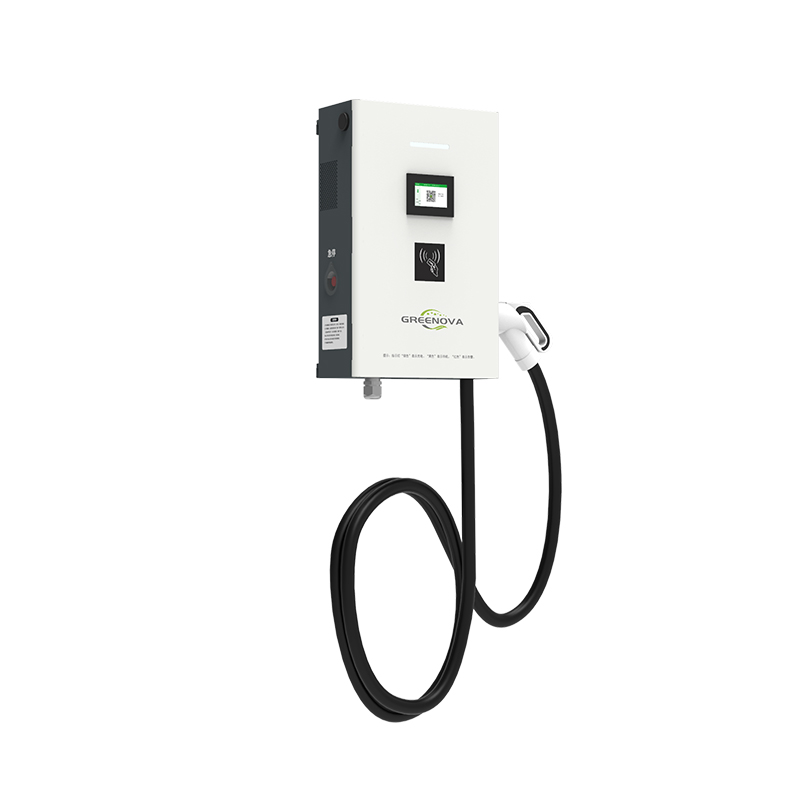

Efficient 30KW Wall-Mounted EV Charger – Installation and Features Overview

Product Specifications for Our Reliable DC Wall Charger :

Power Specifications
Input Connection 3-Phase :3P+N+PE
Input Voltage 400Vac+10%
Frequency 50Hz or 60Hz
THDi ≤5%
Power Factor ≥0.98
Output Voltage 150Vdc-1000Vdc
Max. Output Current 100A( 125A CHAdeMO )
Rated Power 20KW 30kW 40KW

User interface & contrcol

LCD Display 4.3″ Color Touch Screen
User Authentication RFID(ISO/EC 14443)(APP/ Credit Card Customization )
LED Indicator Green/Blue/Red
Charger Connector CCS2(CCS1 /CHAdeMo Optional
Energy Measuring DC meter, with 1% accuracy

Communication

Backend Ethemet / Bluetooth / Wi-Fi ( 4G Optional )
Charging Protocol ISO 15118 , DIN 70121
Backend Protocol OCPP 1.6 J(OCPP2.x Coming soon)

Protection

Residual Current Device Yes
Internal Fuse Yes
Electrical Protection Over/Under Voltage Protection,Over Current Protection, Short Circuit Protection, Over/Under Temperature Protection, Lightning Protection, Ground Fault,Surge Protection

Environmental

Operating Temperature -30℃-+50℃
Storage Temperature -40℃-+75℃
Operating Humidity Max.93%RH,Non-Condensing
Operating Altitude ≤ 2000m
IP, lK Level IP54,IK10
Cooling Method Fan Cooling

Mechanical

Product Dimension 650mm*440mm*267.5mm( W*D*H)
Package Dimension 900mm*540mm*430mm( W*D*H)
Charging Cable Length 5m( Customizable )
Weight 63kg( Net )/ 91kg( Gross )
Mounting Wall-mount and Stand-mount

Certifications

Certificate IEC62196-1,IEC62196-3,IEC 61851-1,IEC61851-23,IEC61851-24
Safety CE
