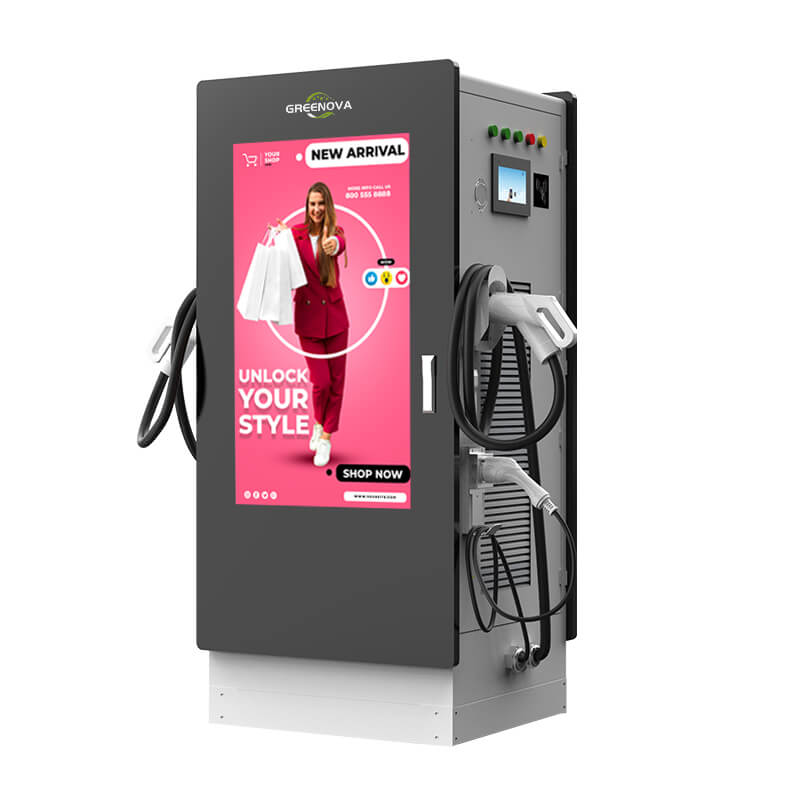

Smart Charging Station with Digital Display

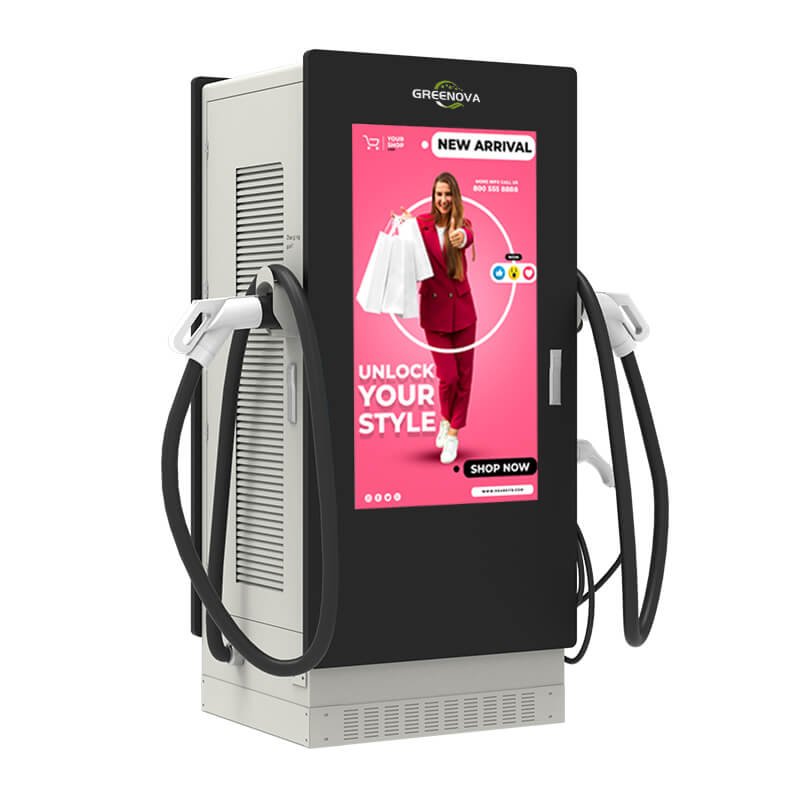

Digital Advertising Charging Station – Side View with Screen

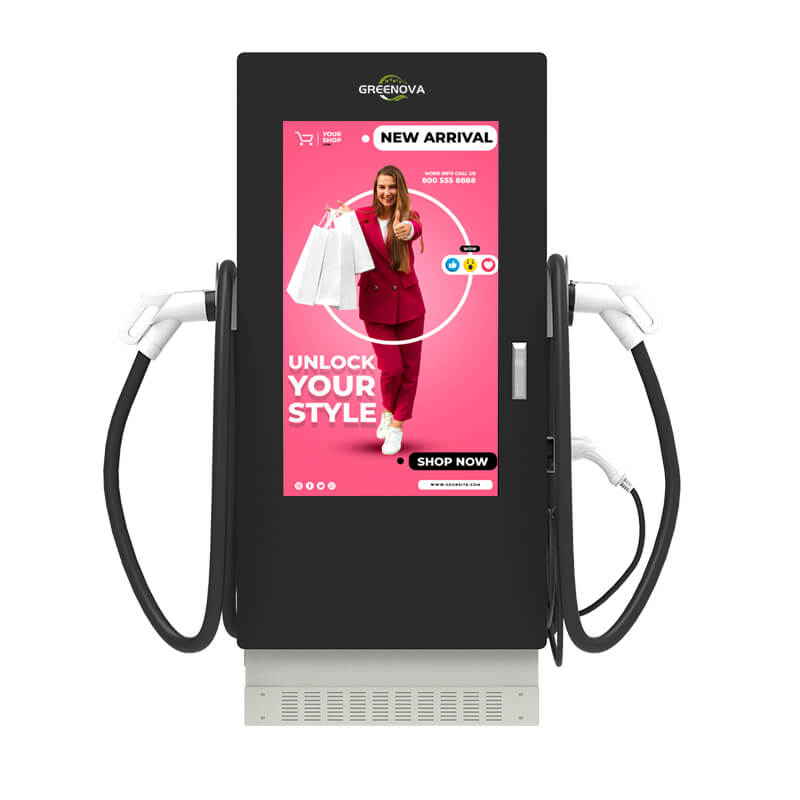

60-160KW Advertising DC Fast EV Charging Stations for Commercial Use

60-160KW Advertising DC Fast Charging Stations offer rapid charging for electric vehicles while integrating digital advertising capabilities. Perfect for high-traffic areas, these stations provide efficient, reliable charging and an additional revenue stream through targeted ads.

Greenova Wall-Mounted EV Charger – Key Features & Benefits

✅ OEM & ODM Support & Multi-Language Customization – Tailored solutions to meet diverse market needs.
✅ Rapid Charging Speed – Achieves 80% charge in just 20 minutes, providing quick turnaround for EV fleets.
✅ Universal Compatibility – Supports CCS, CHAdeMO, and GB/T standards for seamless charging across global EV models.
✅ Safety and Efficiency – With an efficiency over 95% and power factor above 0.98, the station also offers multiple layers of protection for user safety.
✅ Integrated Advertising Display: Features built-in digital advertising screens to maximize visibility and create additional revenue opportunities.

Get A Free Quote

60-160KW DC Fast Charging Stations with Advertising Integration Description

60-160KW DC Fast Charging Stations Featuring Advertising Solutions

The 60-160KW Advertising DC Fast Charging Stations are high-performance chargers designed to meet the needs of commercial EV charging networks. With charging capacities from 60KW to 160KW, they deliver rapid recharging for electric vehicles, reducing downtime. Equipped with advertising screens, these stations provide businesses an opportunity to display ads, enhancing visibility and generating revenue. Ideal for public spaces, highways, and commercial locations, they are compatible with various EV models, supporting CCS and CHAdeMO standards. As a trusted manufacturer and supplier, we offer OEM&ODM bulk solutions to meet your charging infrastructure needs.

60-160KW DC Fast EV Charging Stations with Built-in Advertising Technical/Parameters

Category	Model	GN-ENCADC060-160K
input	Power Supply	3P+N+PE
	Battery Pack Voltage	380VAC+15%
	Frequency	45/65Hz
	THDi	≤ 5%
	Efficiency	≥ 95%
	Power Factor	≥ 0.99
Output	Connector Type	CCS1/CCS2/GB/T/CHAdeMO
	Voltage	200-1000VDC
	DC Current	200Amax/250A(Optional)
	Power Rating	60kw -160kw ( AC+DC )
	Voltage Accuracy	≤ 0.5%
	Current Accuracy	≥ +1%
General	HMI	43-inch display + 7-Inch Touchscreen
	Charging Start Method	RFID Card/QR Code /Password
	Cable Length	5m
	Communication Protocol	OCPP 1.6J
	Operating Noise Level	≤ 75dB
	Ingress Rating	IP54
	IK Rating	IK10 (display is IK08)
	Power Meter	Accuracy Class 1.0 energy meter
	Enclosure	Galvanized steel, surface sprayed with anti-corrosion paint
	Place of Installation	Indoor / Outdoor
	Product Dimension(WDH)	7907001680mm 7907001680mm
	Package Dimension(WDH)	10708001910mm 10708001910mm
	Protection	Over Current,Under Voltage,Over Voltage,Short Circuit,ResidualCurrent,Surge Protection,Over Temperature
	Certification Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772,CHAdeMO etc
	Network Connection	Cellular modem:WIFI 4GLAN:10/100 Base-T Ethernet
Environment	Operating temperature	-25° C~+55° C
	Storage temperature	-40° C~+75° C
	Maximum Installation Height	≤ 2000m
	Operating Humidity	5%~95% RH

Get Your Advertisment DC EV Charger Quote Now

Experience reliable, efficient charging—contact us for a quote today!

Get A Free Quote Now

Products Categories

DC EV Chargering Station

AC EV Charger

Home AC EV Charger

Commercial AC EV Charger

AC Portable EV Charger

Split EV Charger

Battery Energy Storage System

Emergency Charging System

Get A Free Quote

60-160KW Advertising DC Fast EV Charging Stations Applications

Applications of DC Fast Charging Station

Public Charging Networks – Ideal for urban areas, highway rest stops, and busy city centers, providing rapid charging to EV users.
Fleet Management – Perfect for commercial fleets, ensuring quick and efficient charging for vehicles in high-demand environments.
Electric Vehicle Dealerships – Dealers can offer fast charging to customers, improving the buying and service experience.
Corporate & Business Campuses – Companies can install DC Fast Charging stations to support employees who drive EVs, enhancing sustainability efforts.
Transportation Hubs – Airports, bus stations, and train terminals can provide fast charging for public and private EVs, reducing waiting times.
Residential Complexes – Can be installed in parking areas of large residential complexes, providing convenient charging solutions for EV owners.

High-Power DC Fast Charger /DC Fast EV Charger with Advertising Integration – Installation and Features Overview

Product Specifications for Our Reliable DC Fast Charger :

Power Specifications
Input Connection 3-Phase :3P+N+PE
Input Voltage 400Vac+10%
Frequency 50Hz or 60Hz
THDi ≤5%
Power Factor ≥0.98
Output Voltage 150Vdc-1000Vdc
Max. Output Current 200A
Rated Power 60-160KW

User interface & contrcol

7 Inch Touch Color Screen+43 inch LCD display Screen
User Authentication RFID(ISO/EC 14443)(APP/ Credit Card Customization )
LED Indicator Green/Blue/Red
Charger Connector CCS2(CCS1 /CHAdeMo Optional
Energy Measuring DC meter, with 1% accuracy

Ad display Section

43 inches outdoor LCD monitor
Support 1080P Full HD
operating system :Android 4.2 or above
video playback: Support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc.
Image Format : Support BMP, JPEG, PNG, GIF, etc.
play mode : Receive media content through the network, store it locally, and then play it in a loop, insert, timed play, pad play, etc.; import it through a U disk; play it directly through a U disk.

Communication

Backend Ethemet / Bluetooth / Wi-Fi ( 4G Optional )
Charging Protocol ISO 15118 , DIN 70121
Backend Protocol OCPP 1.6 J(OCPP2.x Coming soon)

Protection

Residual Current Device Yes
Internal Fuse Yes
Electrical Protection Over/Under Voltage Protection,Over Current Protection, Short Circuit Protection, Over/Under Temperature Protection, Lightning Protection, Ground Fault,Surge Protection

Environmental

Operating Temperature -30℃-+50℃
Storage Temperature -40℃-+75℃
Operating Humidity Max.93%RH,Non-Condensing
Operating Altitude ≤ 2000m
IP, lK Level IP54,IK10
Cooling Method Fan Cooling

Mechanical

Product Dimension 1920 x 750 x 750 mm( W*D*H)
Package Dimension 1145*942*2150( W*D*H)
Charging Cable Length 5m( Customizable )
Weight 400kg( Net )/470 kg( Gross )
Floor Standing

Certifications

Certificate IEC62196-1,IEC62196-3,IEC 61851-1,IEC61851-23,IEC61851-24
Safety CE
