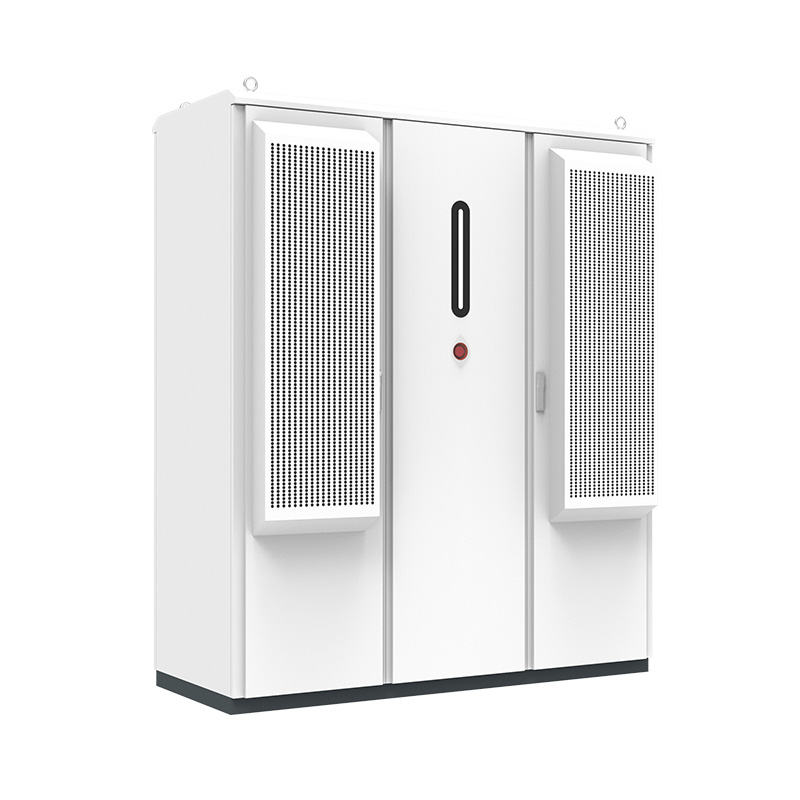

High-Efficiency-EV-Charger-–-Installation

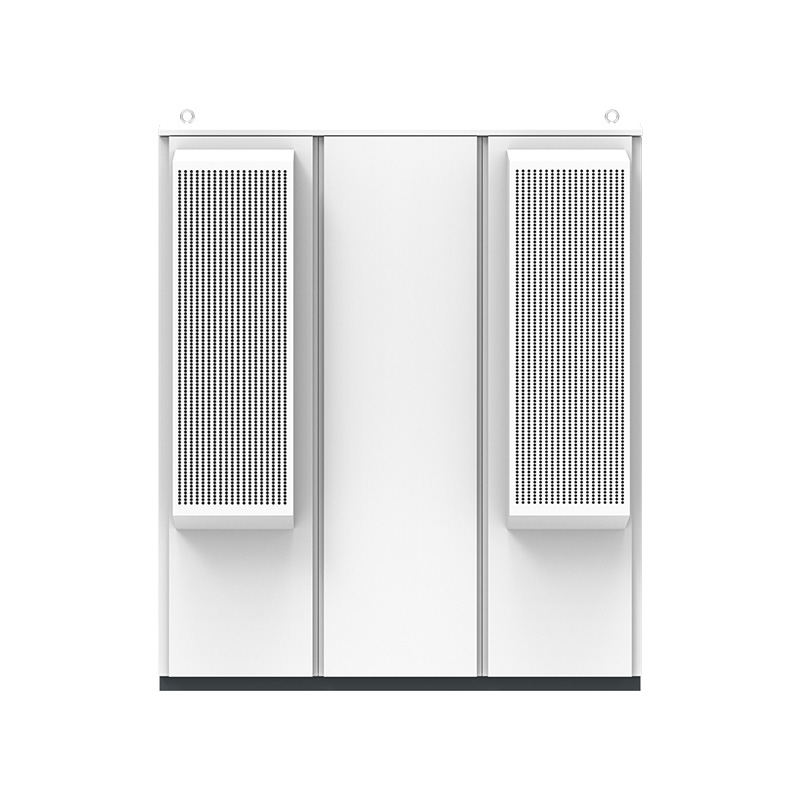

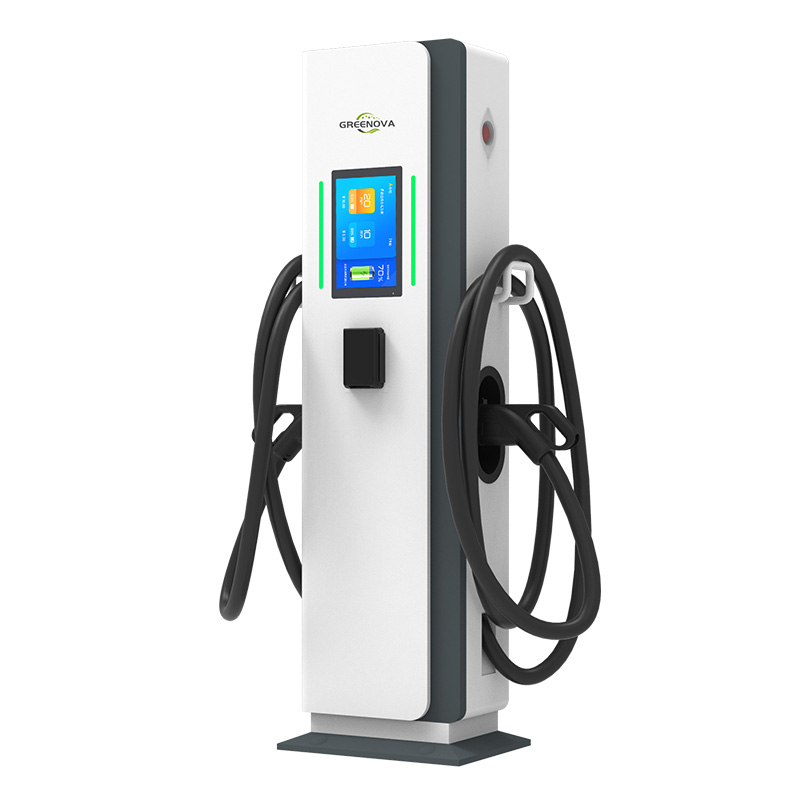

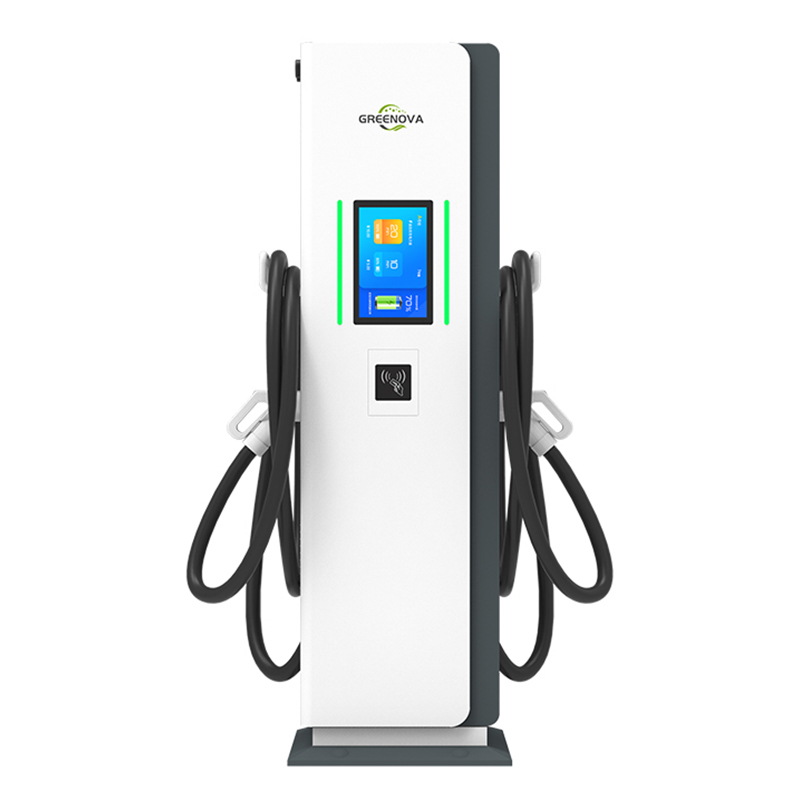

720KW Split DC Fast Charging Station

Our Split DC Fast Charging Station are built with advanced energy storage systems and are ideal for EV fleets, offering rapid recharging and high efficiency.

Greenova Wall-Mounted EV Charger – Key Features & Benefits

✅ OEM & ODM Support & Multi-Language Customization – Tailored solutions to meet diverse market needs.
✅ Rapid Charging Speed – Achieves 80% charge in just 20 minutes, providing quick turnaround for EV fleets.
✅ Universal Compatibility – Supports CCS, CHAdeMO, and GB/T standards for seamless charging across global EV models.
✅ Safety and Efficiency – With an efficiency over 95% and power factor above 0.98, the station also offers multiple layers of protection for user safety.
✅ Advanced Energy Storage – Integrated energy storage and smart inverter systems enhance operational efficiency.

Get A Free Quote

Split DC Fast Charging Station Description

Greenova DC Electric Vehicle Charging Station For Public Installations

Greenova, a 15 years EV charger manufacturer, Our DC Fast Charging Station is a cutting-edge solution designed to provide rapid charging for electric vehicles (EVs). With fast charging speeds, it allows EVs to be charged to 80% in just 30 minutes, significantly reducing downtime. This product is ideal for public charging stations, fleet management, and commercial applications where quick turnaround times are critical. As a trusted supplier and manufacturer, we offer customizable solutions to meet diverse client needs, ensuring efficient, reliable, and scalable EV charging infrastructure. Whether for high-traffic locations or vehicle fleets, our DC Fast Charging Station is a cost-effective solution for businesses looking to offer seamless charging services.

720kw Split High-Speed DC Charger /Ultra-Fast DC EV Charging Station /Supercharger DC Station Technical/Parameters

Category	Model	GN-ENCFDC240-720K
input	Power Supply	3P+N+PE
	Battery Pack Voltage	380VAC+15%
	Frequency	45/65Hz
	THDi	≤ 5%
	Efficiency	≥ 95%
	Power Factor	≥ 0.99
Output	Connector Type	CCS1/CCS2/GB/T/CHAdeMO
	Voltage	200-1000VDC
	DC Current	200Amax/250A /Liquid 800A(Optional)
	Power Rating	240kw -720kw
	Voltage Accuracy	≤ 0.5%
	Current Accuracy	≥ +1%
General	HMI	7-Inch Touchscreen
	Charging Start Method	RFID Card/QR Code /Password
	Cable Length	5m
	Communication Protocol	Card payment/code scanning payment OCPP 1.6J
	Operating Noise Level	≤ 60dB
	Ingress Rating	IP54
	IK Rating	IK10 (display is IK08)
	Power Meter	Accuracy Class 1.0 energy meter
	Enclosure	Galvanized steel, surface sprayed with anti-corrosion paint
	Place of Installation	Indoor / Outdoor
	Product Dimension(WDH)	7508002000mm
	Package Dimension(WDH)	12008502290mm
	Protection	Over Current,Under Voltage,Over Voltage,Short Circuit,ResidualCurrent,Surge Protection,Over Temperature
	Certification Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772,CHAdeMO etc
	Network Connection	Cellular modem:WIFI 4GLAN:10/100 Base-T Ethernet
Environment	Operating temperature	-25° C~+55° C
	Storage temperature	-40° C~+75° C
	Maximum Installation Height	≤ 2000m
	Operating Humidity	5%~95% RH

Get Your DC EV Charger Quote Now

Experience reliable, efficient charging—contact us for a quote today!

Get A Free Quote Now

Products Categories

DC EV Chargering Station

AC EV Charger

Home AC EV Charger

Commercial AC EV Charger

AC Portable EV Charger

Split EV Charger

Battery Energy Storage System

Emergency Charging System

Get A Free Quote

Split DC EV Charger | Super Fast Charging Station / Split DC Fast EV Charger Applications

Applications of DC Fast Charging Station

Public Charging Networks – Ideal for urban areas, highway rest stops, and busy city centers, providing rapid charging to EV users.
Fleet Management – Perfect for commercial fleets, ensuring quick and efficient charging for vehicles in high-demand environments.
Electric Vehicle Dealerships – Dealers can offer fast charging to customers, improving the buying and service experience.
Corporate & Business Campuses – Companies can install DC Fast Charging stations to support employees who drive EVs, enhancing sustainability efforts.
Transportation Hubs – Airports, bus stations, and train terminals can provide fast charging for public and private EVs, reducing waiting times.
Retail & Commercial Facilities – Shopping malls, restaurants, and entertainment venues can enhance customer satisfaction by offering rapid EV charging stations.

High-Power Split DC Charger /DC Fast EV Charger – Installation and Features Overview

Product Specifications for DC Fast Charging Station Power Specifications

Input Connection 3-Phase :3P+N+PE
Input Voltage 400Vac+10%
Frequency 50Hz or 60Hz
THDi ≤5%
Power Factor ≥0.98
Output Voltage 150Vdc-1000Vdc
Max. Output Current 250A( 125A CHAdeMO ) 250A fast charging terminal: 250A Liquid-cooled super charging terminal: 800A (optional)
Rated Power 240KW-720KW

User interface & contrcol

LCD Display 12.1 Color Touch Screen
User Authentication RFID(ISO/EC 14443)(APP/ Credit Card Customization )
LED Indicator Green/Blue/Red
Charger Connector CCS2(CCS1 /CHAdeMo Optional
Energy Measuring DC meter, with 1% accuracy

Communication

Backend Ethemet / Bluetooth / Wi-Fi ( 4G Optional )
Charging Protocol ISO 15118 , DIN 70121
Backend Protocol OCPP 1.6 J(OCPP2.x Coming soon)

Protection

Residual Current Device Yes
Internal Fuse Yes
Electrical Protection Over/Under Voltage Protection,Over Current Protection, Short Circuit Protection, Over/Under Temperature Protection, Lightning Protection, Ground Fault,Surge Protection

Environmental

Operating Temperature -30℃-+50℃
Storage Temperature -40℃-+75℃
Operating Humidity Max.93%RH,Non-Condensing
Operating Altitude ≤ 2000m
IP, lK Level IP54,IK10
Cooling Method Fan Cooling

Mechanical

Product Dimension 1820*750*2150mm / 460*265*1700mm( W*D*H)
Package Dimension 2220*1050*2440mm/ 820*690*1950( W*D*H)
Charging Cable Length 5m( Customizable )
Weight 400kg( Net )/470 kg( Gross )
Floor Standing

Certifications

Certificate IEC62196-1,IEC62196-3,IEC 61851-1,IEC61851-23,IEC61851-24
Safety CE
