7KW/11KW/22KW EV Charging Station – AC Wallbox for Home Commercial Use

They are suitable for occasions such as private villas, residential areas, commercial oce buildings,urban complex parking lots or urban public charging stations that can charge slowly for a long time; or applied for 4S stores of new energy vehicles, workshop debugging areas, road rescue of new energy vehicles and other occasions that require frequent change of charging station sites or temporary power supply.

Greenova Wall-Mounted EV Charger – Key Features & Benefits

22KW EV Charging Station – AC Wallbox for Home & Commercial Use
Delicate appearance, simple operation, convenient installation
High effciency, reliable and stable performance
Friendly interaction interface, 4.3-inch/7 inch color touch screen(optional)
Support multiple modes of charging, operation management and payment
Support Ethernet or wireless telecommunication
Support RFID Card/OCPP 1.6J (optional)
Support Type-2 connector(or Socket)optional
Overload integrated Protection
Support online data upgrade

Get A Free Quote

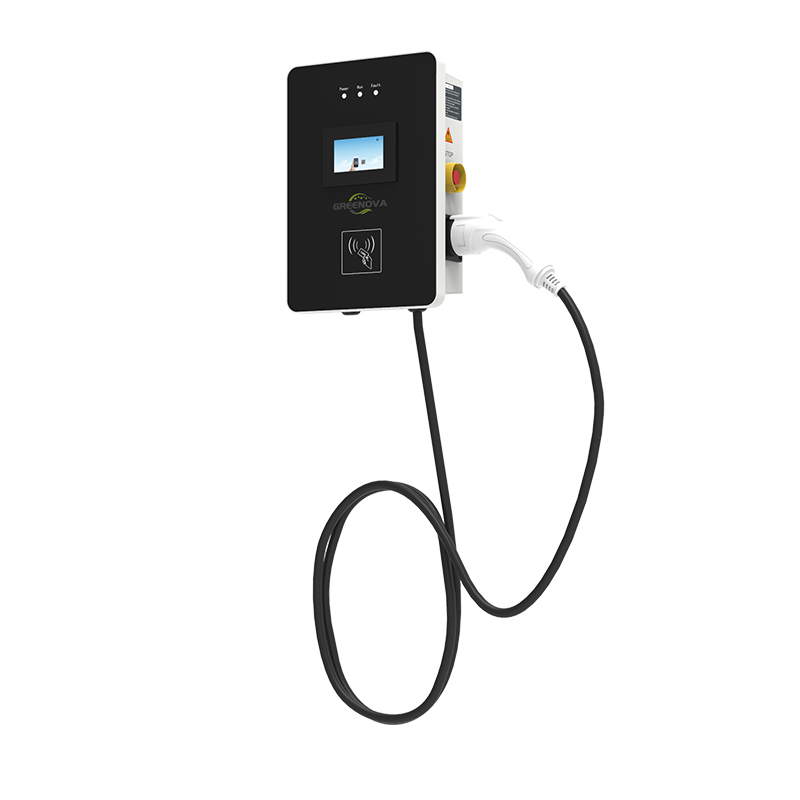

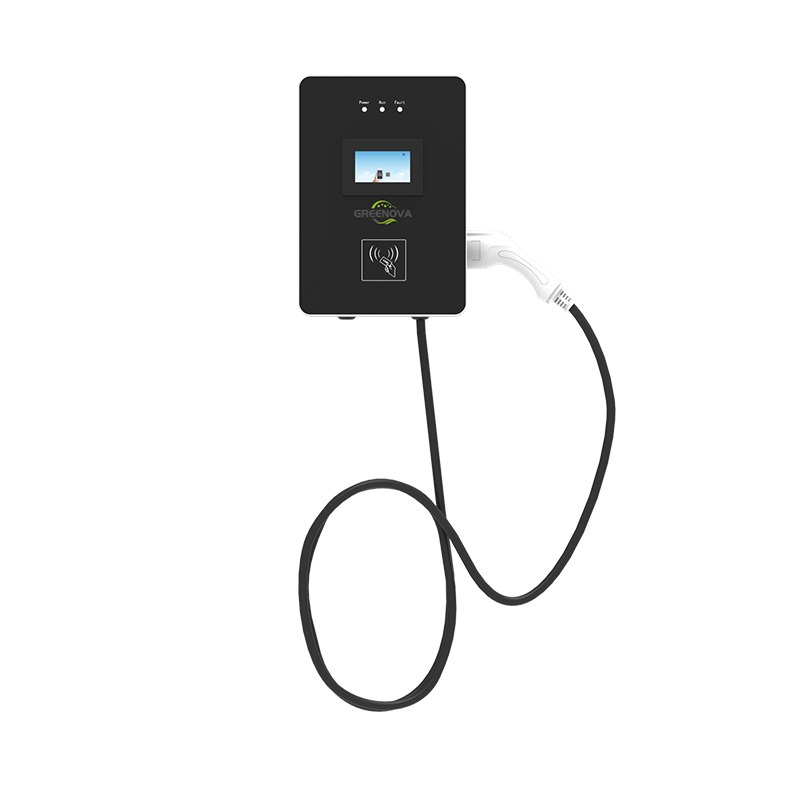

AC EV CHARGER 3.5KW/7KW/11KW/22KW

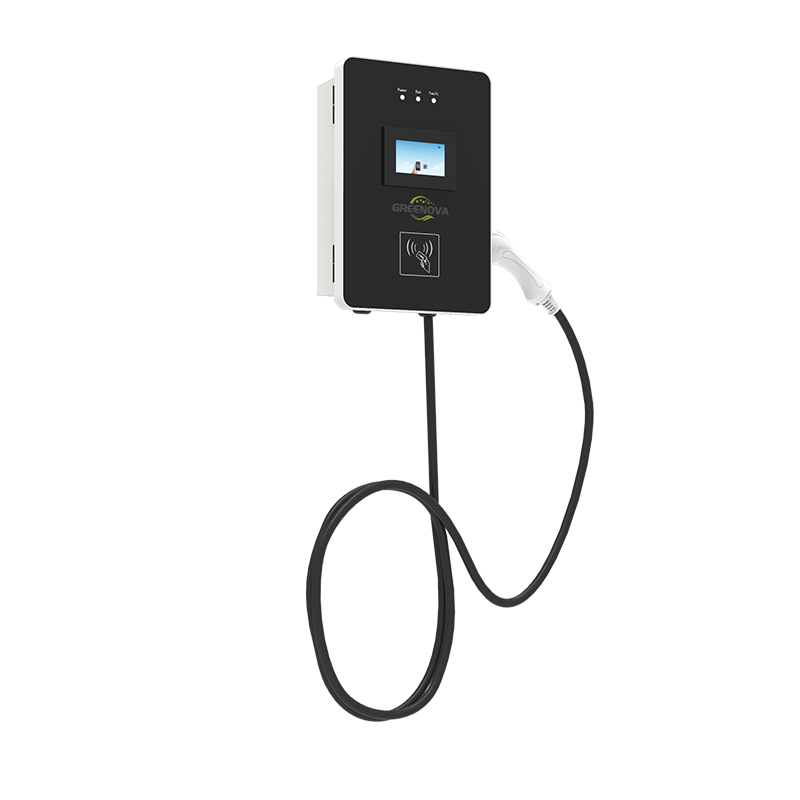

Greenova Wall-Mounted EV Charger – Reliable & Smart Charging Solution

Greenova, a 15 years EV charger manufacturer, offers a wall-mounted EV charger designed for residential, commercial, and public charging stations. With universal compatibility, it supports CCS, CHAdeMO, and GB/T, ensuring seamless charging for global EV models. Featuring OCPP integration, RFID authentication, and remote app control, it enhances user convenience and security. Its compact, space-saving design optimizes installation in parking lots, garages, and fleet operations. Built-in safety protections against overvoltage, overcurrent, and short circuits ensure reliable performance. Greenova provides OEM & ODM solutions, catering to EV charger distributors, wholesalers, and fleet operators worldwide. Join to us to power the ev future.

7KW/11KW/22KW EV AC EV Charger Technical/Parameters

Get Your AC Home Charging Station Quote Now

Experience reliable, efficient charging—contact us for a quote today!

Get A Free Quote Now

Products Categories

DC EV Chargering Station

AC EV Charger

Home AC EV Charger

Commercial AC EV Charger

AC Portable EV Charger

Split EV Charger

Battery Energy Storage System

Emergency Charging System

Get A Free Quote

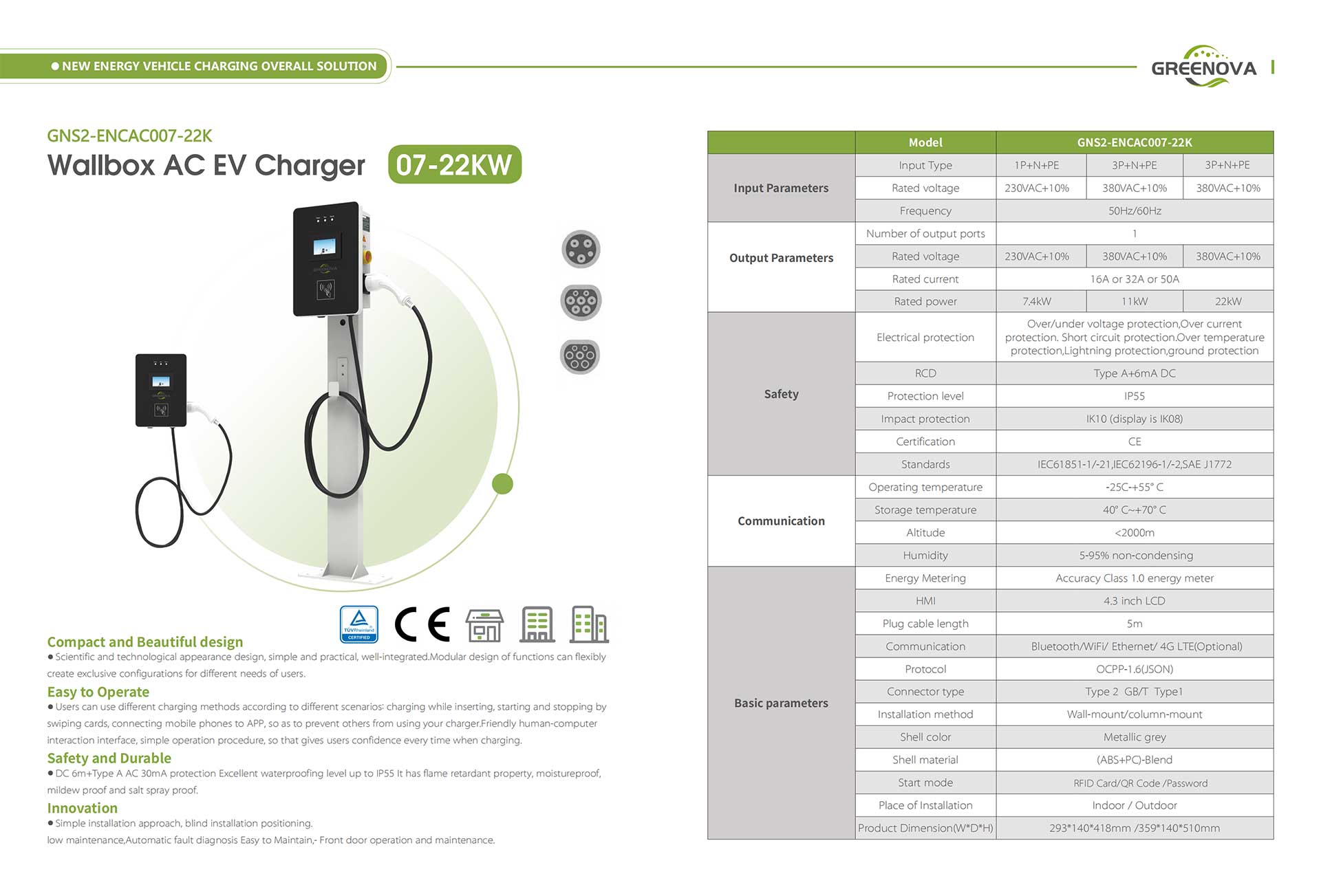

7KW11KW22KW EV AC EV Charger Technical Parameters

Applications of Wall-Mount DC Charging Station

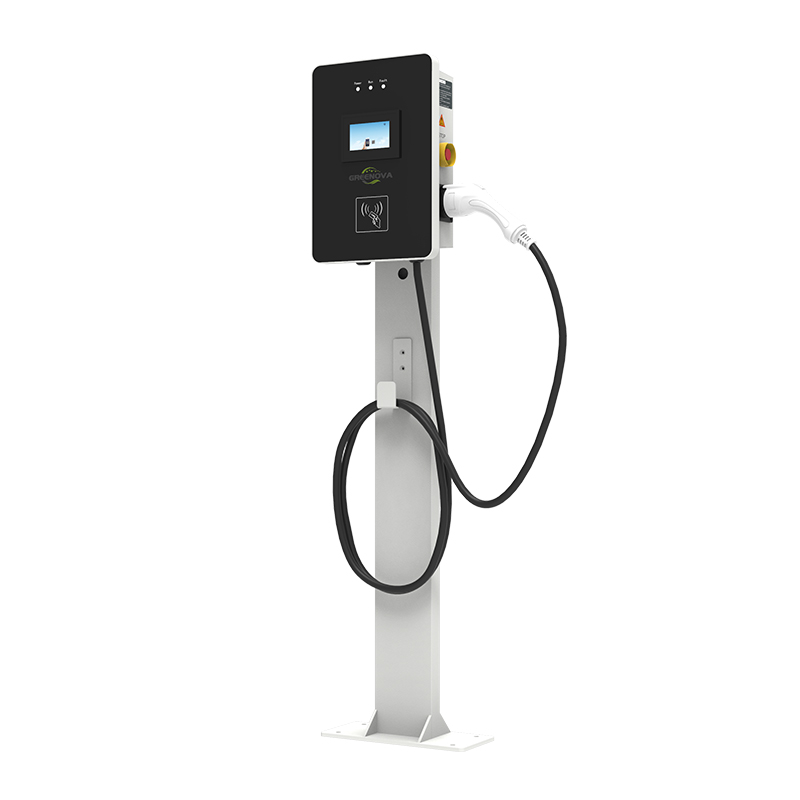

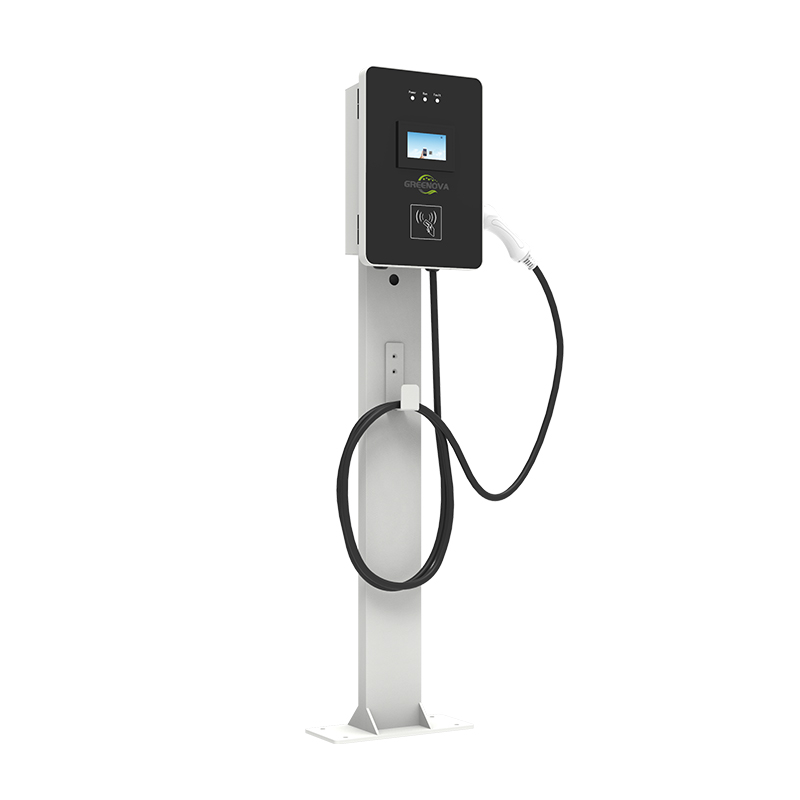

22KW Type 2 AC EV Charger – TUV-Certified & Space-Saving
Fast. Reliable. Future-Ready.

Elevate your EV charging experience with our versatile 22KW AC Home Charger, certified by TUV for reliability and performance. This sleek, space-saving solution is perfect for both residential and commercial applications, boasting a rapid charging capability that delivers a full charge in under 3 hours for an eco-friendly journey of up to 100 miles.

Experience precision with our integrated MID meter, and enjoy the convenience of multiple charging options (7KW, 11KW, 22KW) through a Type 2 connector compliant with IEC 62196-2 standards. Designed for discerning users, our charger features a 4.3-inch clear LCD display, optional RFID/App user identification, and adherence to the latest OCPP 1.6 JSON protocol.

With IP55 protection for indoor/outdoor use and robust safety features like RCD Type A and DC 6mA leakage protection, our charger ensures durability and safety. Offering both wall-mount and pole-mount installation options, the unit seamlessly integrates into any environment, ensuring that your electric vehicle is always powered and ready to go.

⚡ Ultra-Fast Charging

3 power modes: 7KW / 11KW / 22KW (Type 2 connector, IEC 62196-2 compliant)

Full charge in ≤3 hrs (vs. 6–8 hrs with standard 7KW chargers)

📊 Smart Energy Management

Integrated MID meter for precise billing & consumption tracking

OCPP 1.6 JSON protocol for seamless network integration

Optional RFID/App control (user authentication & remote monitoring)

🛡️ Built for Safety & Durability

IP55-rated (indoor/outdoor use)

RCD Type A + DC 6mA leakage protection

Fire-resistant casing & surge protection

🖥️ User-Centric Design

4.3-inch LCD with real-time stats (voltage, current, session time)

Flexible installation: Wall-mount or pole-mount

Key Applications:

Highway gas/service stations
Parking garages
Commercial fleets
EV dealerships
EV infrastructure
Invest in a future-proof charging station that blends performance, safety, and style.

3.5/7/11/22KW Single-phase AC EV Charger

Power Specifications

Input connection 3-Phase :3P+N+PE( Single-Phase Optional: 1P+N+PE)
Input Voltage 400Vac+10%(230Vac+10% 0ptional)
Input Current 16A or 32A
Frequency 50Hz or 60Hz
Output Voltage 400Vac+10%(230Vac+10% Optional)
Output Current 16A or 32A
Rated Power 11kW-22kW(3.7kW-7.4kw Optional)

User Interface & control

LCD Display 4.3″ Color Touch Screen( Optional )
User Authentication RFID(ISO/IEC 14443)/APP
LED Indicator Green/Blue/Red
Charger Connector IEC 62196-2 Type 2 (SAEJ1772 Type 1 0ptional)
Energy Measuring MID Meter

Communication

Backend Bluetooth / Wi-Fi/ Ethernet (4G Optional )
Backend Protocol OCPP 1.6J(0CPP2.x Coming soon)

Protection

Residual Current Protection Type A 30mA+DC 6mA
Electrical Protection Over/Under Voltage Protection,Over Current Protection, Short Circuit Protection, Over Temperature Protection, Lightning Protection, Ground Fault, Surge Protection

Environmental

Operating Temperature -30℃-+50℃
Storage Temperature -40℃-+85℃
Operating Humidity Max. 93% RH, Non-Condensing
Operating Altitude ≤2000m
IP,lK Level IP55,IK08
Cooling Method Natural Cooling

Mechanical

Product Dimension L293*W140*H418(mm)
Package Dimension L359*W140*H510(mm)
Weight 7.9kg( Net )/9.7kg( Gross )
Charging Cable Length 5m(Customizable)
Mounting Wall-mount and Stand-mount

Certifications

Certificate EN 61851-1 2019,IEC 62955 2018,IEC 61008-1 2010,IEC/EN 62196-1
Safety TUV, CE
